28084 руб.

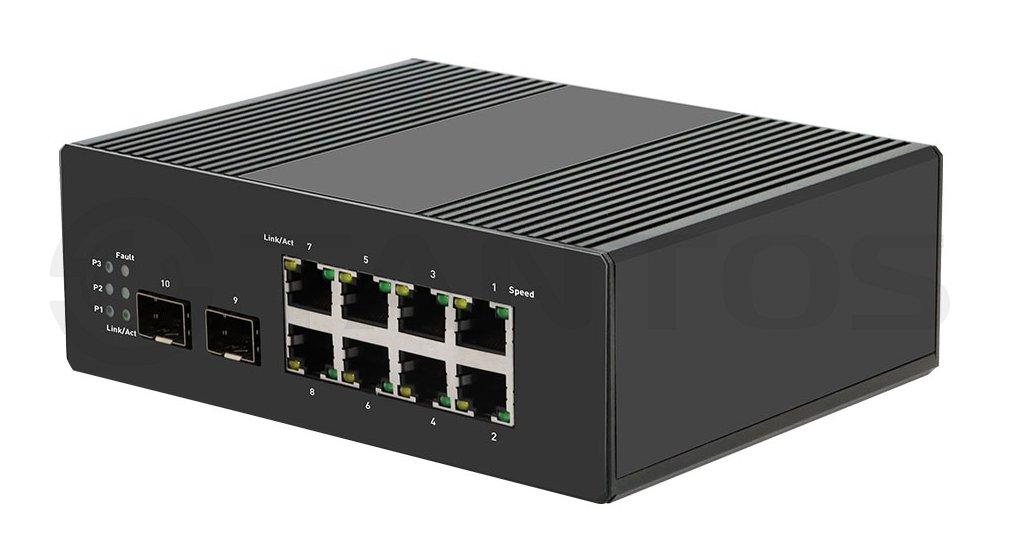

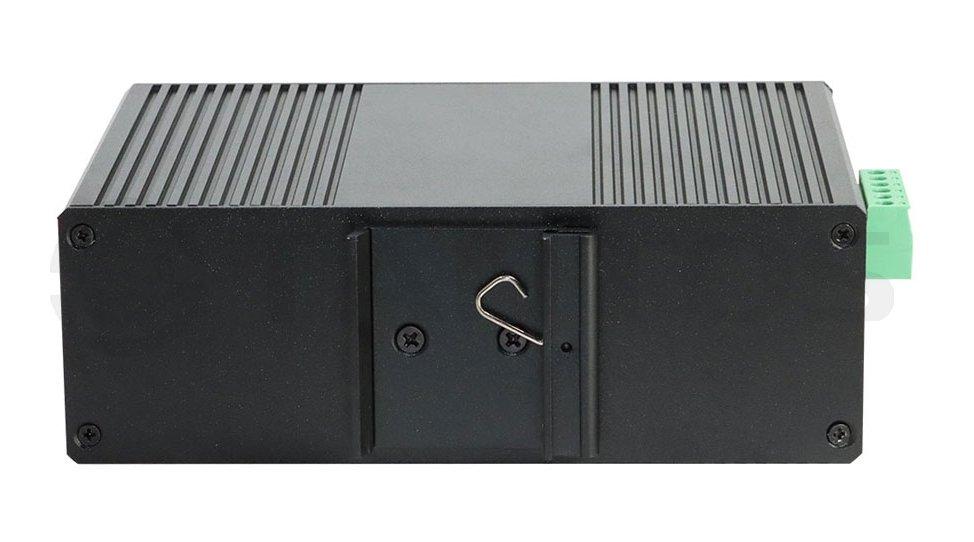

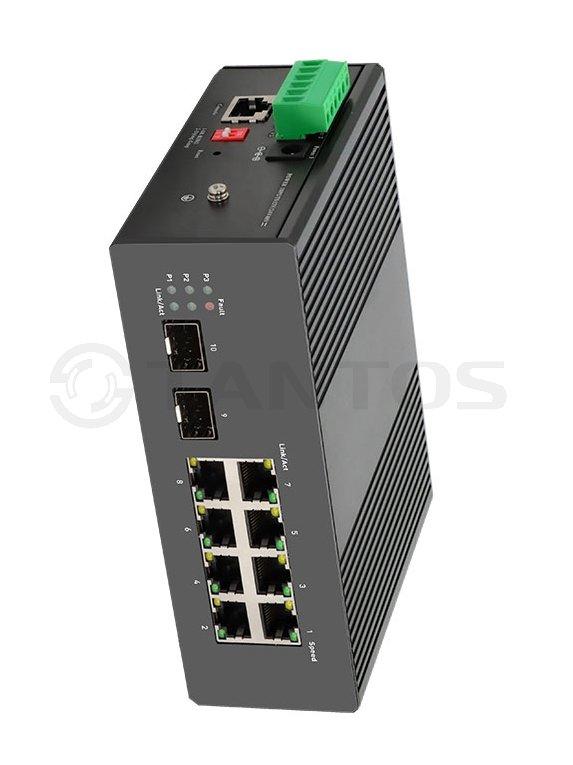

Промышленный управляемый L3/L2+ PoE коммутатор для работы в сложных условиях 8×1000 Мбит/с PoE портов, максимальная мощность PoE 30Вт на порт, + 2 SFP 1000Мбит/с порта, консольный порт управления, общий бюджет PoE до 240 Вт, автоматический PoE watchdog, внешний блок питания (в комплект не входит), грозозащита и защита от статического электричества, от -40°С до +75°С, IP40, установка на DIN рейку, защита от перегрева и короткого замыкания
| Производитель | Tantos |
|---|---|

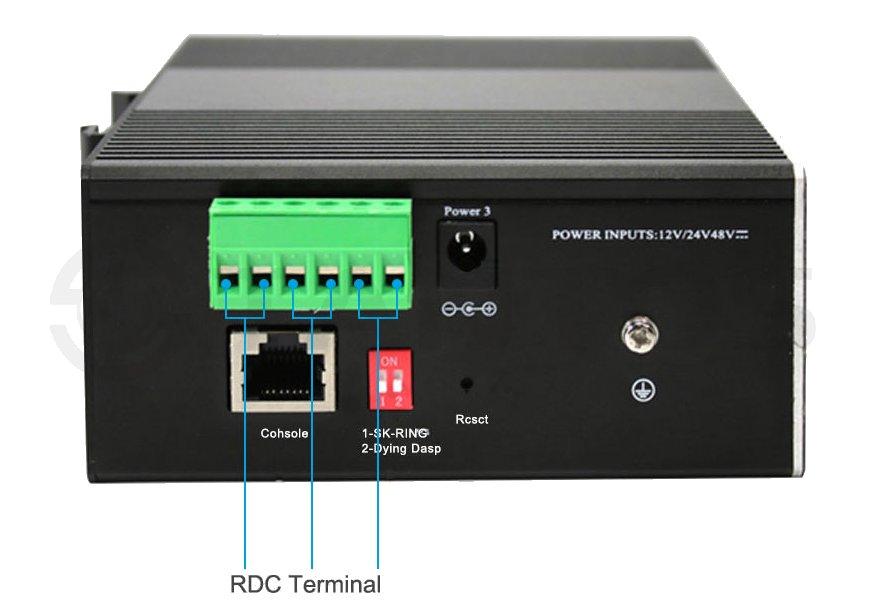

| Порты | 1-8 : 10/100/1000 Мбит Мбит/с PoE порты до 30Вт 9-10: 100/1000 Мбит/с SFP 11 : Консольный порт управления 1 группа тревожных выходов и релейных выходов, пользовательские условия срабатывания |
| Скорость передачи данных | 2000 Мбит/с полный дуплех, 10/100/1000 Мбит/с полудуплех |
| Расстояние | 10/100/1000 Мбит/с при длине кабеля до 100 метров скорость составляет 1000 Мбит/с |
| Стандарты | IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x,IEEE802.3z, IEEE802.3afI,EEE802.3at |
| Коммутационная матрица | 20 ГБит/с |
| Метод передачи | Store-and-Forward |
| Таблица MAC адресов | 8К |
| Буфер | 4 Mb |
| Power Supply Pin | Only support 1/2 (+), 3/6 (-) 4-core power supply PoE Порты 1-8: 1/2(+52В), 3/6(GND) ?30Вт |
| LED | System indicator:SYS(green) Network Indicator: Link (yellow) SFP Indicator: L/A (green) PoE Indicator: PoE (green) |
| Lightning Protection | "Lightning protection: 6KV 8/20us IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) "IEC61000-4-4(EFT): power cable: ±4kV "IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV IEC61000-4-6(radio frequency transmis |
| Mechanical Properties | IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
| Габариты | 155×114.1×51.7мм |
| Диапазон рабочих температур | от -40°С до +75°С, относительная влажность от 5 до 90% (без конденсата) |
| Температура хранения | от -40°С до +85°С, относительная влажность от 5 до 90% (без конденсата) |
| Port | Support IEEE802.3x flow control (full duplex) Support for broadcast storm suppression based on port rate Support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps Support port temperature protection settings Supp |
| PoE Management | Support total power limit configuration for POE power supply Support PoE output power allocation per port, close / start af/at Support PoE output priority configuration per port Support PoE work status per port display Support PoE work and time scheduling |
| Layer 3 Function | L2+ network management function Support IPV4/IPV6 management Support layer3 soft routing (weak three tier) forwarding Support different network segments, communication between different VLAN Support static routing / default routing 128, 1024 ARP software |
| VLAN | Support port based VLAN (4K), IEEE802.1q Support protocol based VLAN Support Voice VLAN Support for MAC address-based VLANs Support Access, Trunk, Hybrid three types of port configuration |
| Port Aggregation | Support LACP Support static polymerization "Support the largest 8 aggregation groups |
| Spanning Tree | Support STP (IEEE802.1d) Support RSTP (IEEE802.1w) Support MSTP (IEEE802.1s |
| Industrial Ring Network | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring |
| Protocol | The self-healing time of the ring network is less than 20ms |
| Diagnostics | UDLD Syslog (RFC3164): Local RAM,Local Flash, 8 Remote Server Mirroring: 4 sessions port-based (Many to One) System Diagnostics: CPU Utilization, Memory Utilization, Port Utilization, Technical Support Log Network Diagnostics: Ping Test, Traceroute |
| Multicast | Support IGMP Snooping V1/V2 and support 1024 multicast groups at most Support the users quick departure mechanism Support MLD Snooping V1/V2 Support multicast VLAN |
| Mirror | Bi-directional traffic mirroring supporting the basic port |
| QoS | Support Diff-Serv QoS Each port supports 8 output queues Support 802.1p/DSCP priority mapping Support queue scheduling mechanism (SP, WRR, SP+WRR) Support priority tag Mark/Remark Support stream based packet filtering Support for stream based redirection |
| ACL | Support L2 to L4 packet filtering function, match the first 80 bytes of the message Provide based on the source MAC address, destination MAC address, source IP address, destination IP address, ACL IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN a |
| Safety | Support user grading management and password protection |
| Characteristics | Support IEEE802.1X authentication / centralized MAC address authentication Support AAA&RADIUS authentication Support the number of MAC address learning restrictions Support MAC address black hole Support SSH 2.0 to provide secure passwords for user login |
| DHCP | Support DHCP Client Support DHCP Snooping |
| Management And | Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration |
| Maintenance | Support WEB network management (HTTPS) Support FTP, TFTP, Xmodem, SFTP file download management Support SNMP V1/V2C/V3 Support one bond reduction Support NTP clock Support system work log Support Ping detection Support cable state detection Support CPU in |
| System Requirements | Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later Cat5e or later Ethernet cable TCP/ IP, network adapter and network operating system (Microsoft Windows, Linux or Mac OS X) installed on |
